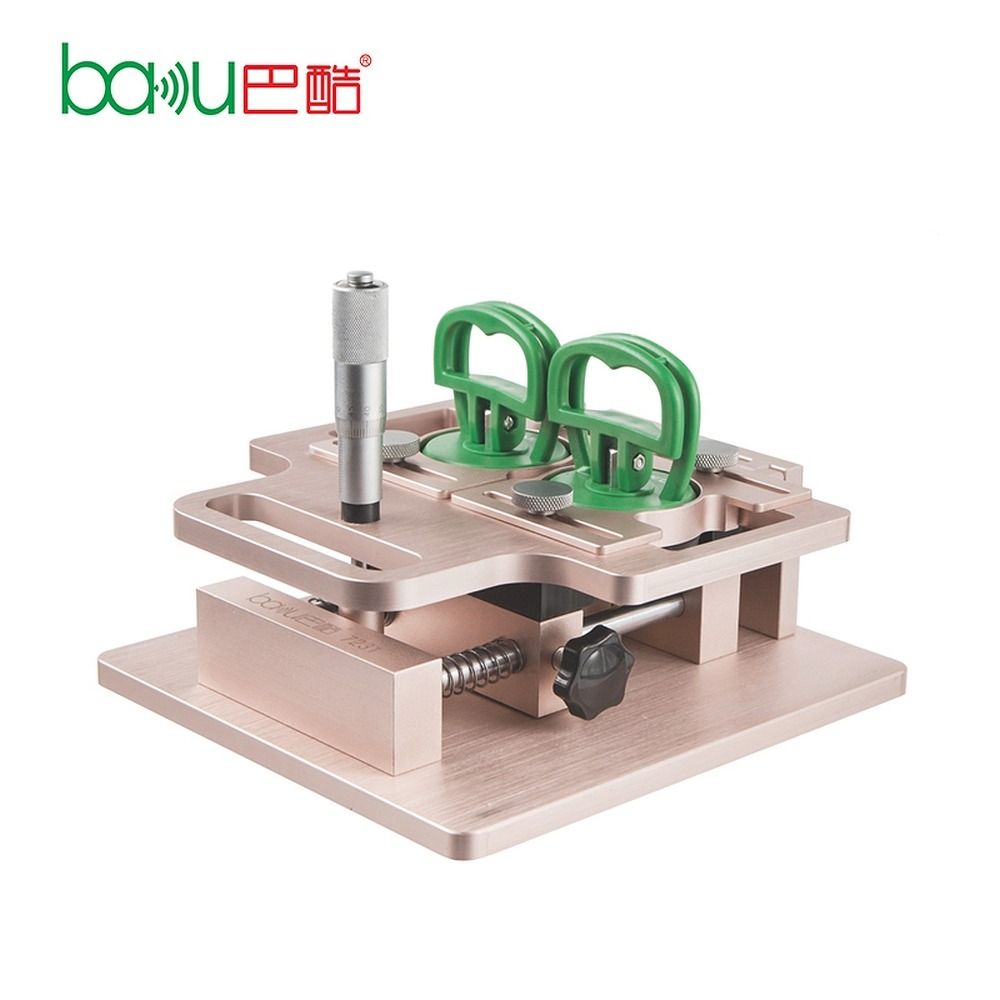

The professional service separator for LCD displays, model BAKU BK-7231, is a key tool for technical services, ensuring high compatibility with the Samsung Service OCTA Disassembly Upper JIG system. This advanced device enables safe and effective separation of the glass from the LCD display or back flaps from the housing body in Samsung smartphones, as well as other models.

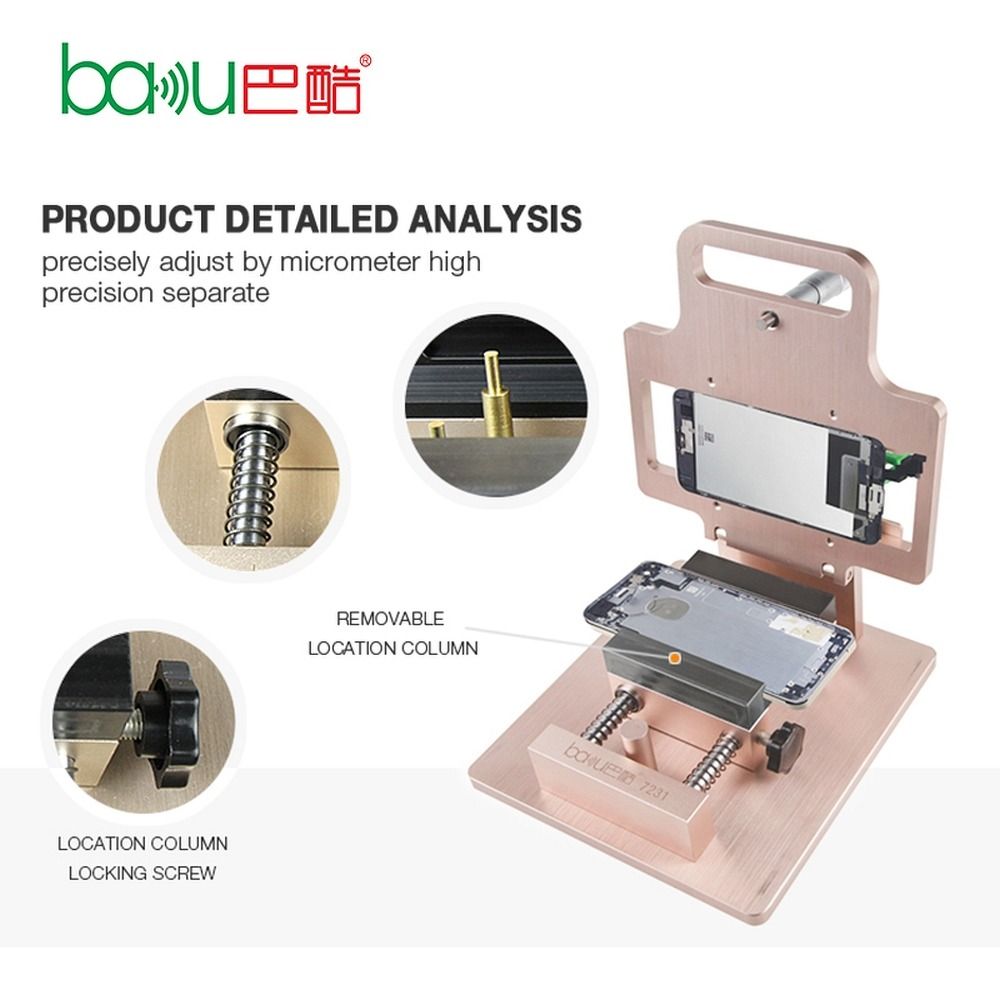

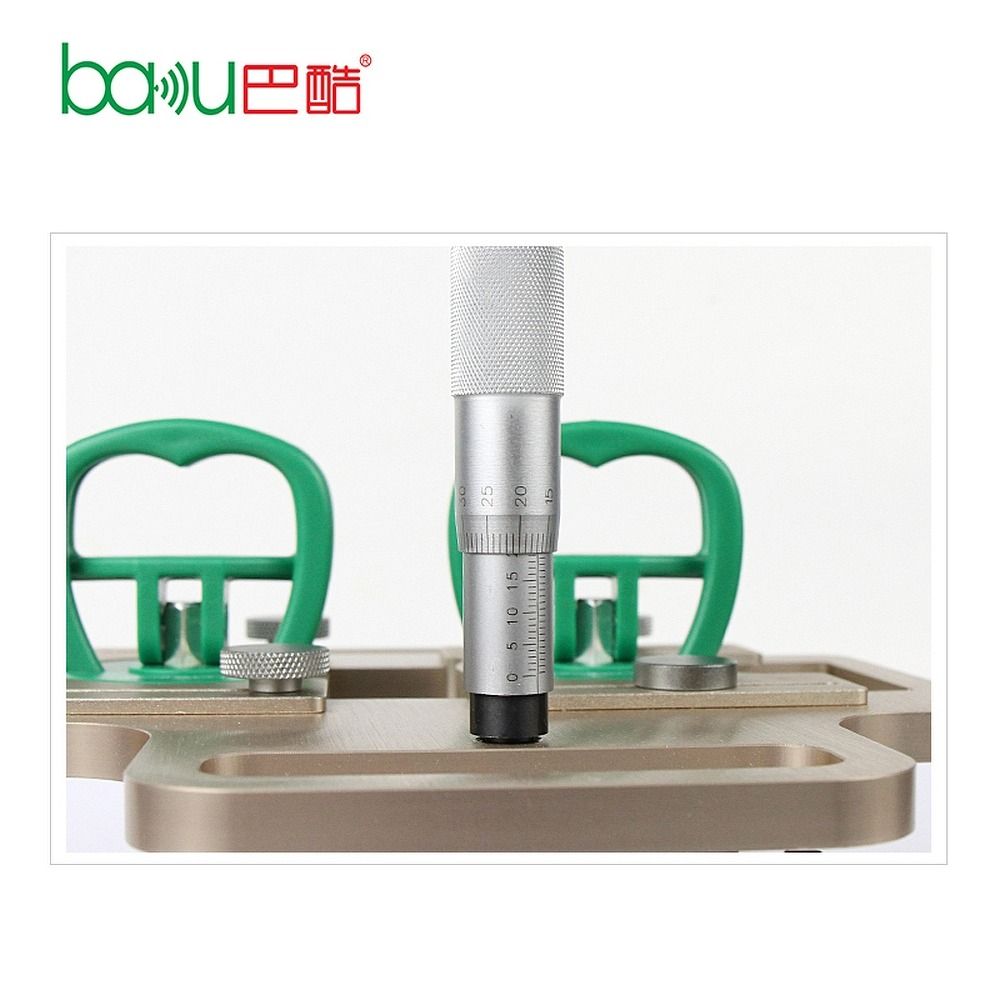

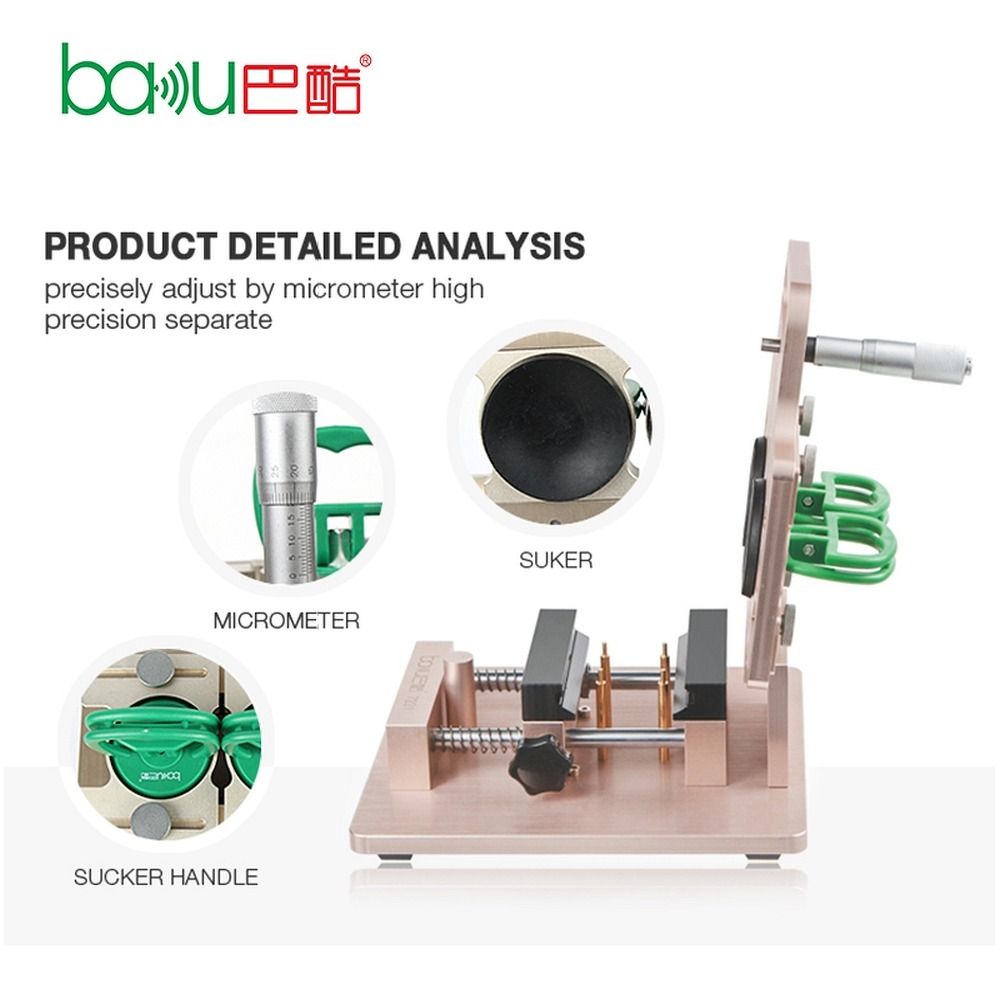

The separator works on the principle of controlled pressure using a manometric screw, which guarantees precise separation of components. It is equipped with strong suction cups with a diameter of 55 mm and a special handle that stabilizes the body of the device during surgery. Thanks to the ability to adjust the position of the suction devices, the separator provides versatility and adaptation to various sizes of devices.
Specification:
Dimensions: 22 x 20 x 15 cm
Maximum width of the device mounted in the holder: 90 mm
Maximum length of the glass: 18 cm
Suction diameter: 57 mm (for optimal suction power)
Net weight: 3.08 kg
Gross weight: 5 kg
